Description

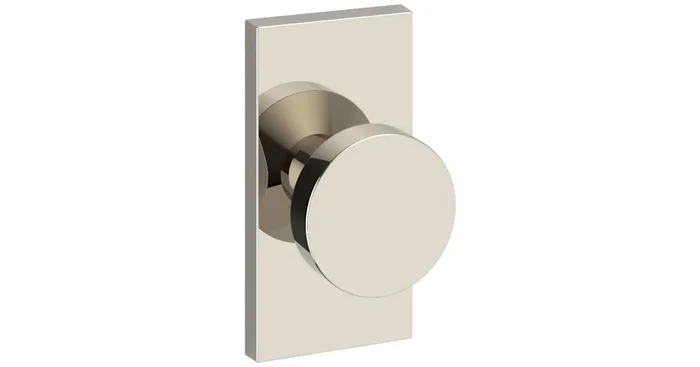

Passage: Passage door hardware has no locking mechanism. Both the interior and exterior handles are always free making it perfect for hallways, closet doors, and anywhere else a lock isn’t needed. Passage door hardware can also be used in conjunction with a deadbolt to secure a back door or entrance.
Features:
- Tested to exceed ANSI/BHMA Grade 2 security requirements
- Constructed of solid brass for durability and dependability
- Installs easily with all necessary mounting hardware included
- Covered by Baldwin’s limited lifetime manufacturer warranty
Specifications:
- Backset: Adjustable 2-3/8″ or 2-3/4″
- Cross Bore: 2-1/8″
- Edge Bore: 1″
- Door Thickness: 1-3/8″ to 2″
- Handing: Reversible Left or Right
- Handle Width: 2-1/4″
- Handle Height: 2-1/4″
- Handle Projection: 2-1/8″
- Trim Width: 2-9/16″
- Trim Height: 5″
- Product Weight: 2.8 lbs.
- Latch Faceplate: Round Corner or Square Corner
Dimensions and Measurements
| Backset | 2-3/4″, 2-3/8″, Adjustable 2-3/8″ or 2-3/4″ |
| Cross Bore | 2-1/8″ |
| Door Thickness | 1-1/2″, 1-3/4″, 1-3/8″, 1-5/8″, 1-7/8″, 2″ |
| Edge Bore | 1″ |
| Handle Height | 2.219 in. |
| Handle Projection | 2.156 in. |
| Handle Width | 2.219 in. |
| Product Weight | 2.8 lbs. |
| Trim Height | 5 in. |
| Trim Width | 2.5625 in. |
Characteristics and Features
| Concealed Screws | No |
| Function | Passage |
| Handing | Left, Reversible, Right |
| Handle Design | Contemporary |
| Handle Material | Metal |
| Handle Style | Knob |
| Knob Shape | Flat, Round |
| Latch Faceplate | Round Corner, Square Corner |
| Material | Brass |
| Rosette Shape | Rectangle |
| Solid Construction | Solid Brass |
| Theme | Contemporary |
