Description

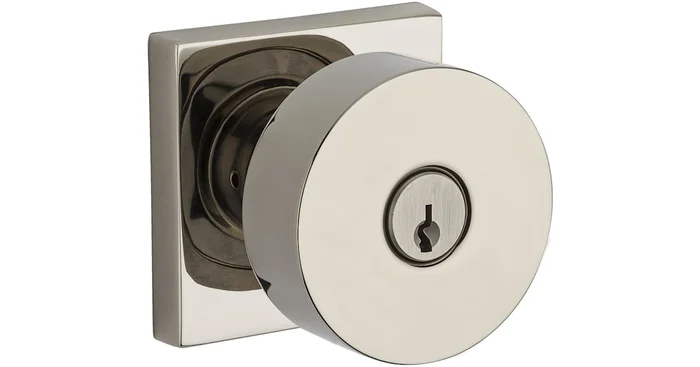

Single Cylinder Keyed Entry: Single cylinder keyed entry door hardware is locked and unlocked from the exterior using a key and can be locked and unlocked from the interior using the locking mechanism. Perfect for securing entrances, side doors, and anywhere else that needs a bit more security.
Features:
- Tested to exceed ANSI/BHMA Grade 2 security requirements
- Constructed of solid brass for durability and premium feel
- Accommodates door thickness 1-3/8″ to 2″; up to 2-1/2″ with purchase of a thick door kit
- Limited Lifetime Mechanical Warranty and Limited 25 Year Finish Warranty
- Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Specifications:
- Backset: Adjustable 2-3/8″ or 2-3/4″
- Cross Bore: 2-1/8″
- Edge Bore: 1″
- Door Thickness: 1-3/8″ to 2″
- Handing: Reversible Left or Right
- Handle Width: 2-5/16″
- Handle Height: 2-5/16″
- Handle Projection: 2-3/16″
- Trim Width: 2-9/16″
- Trim Height: 2-9/16″
- Product Weight: 5 lbs
- Latch Faceplate: Drive-In, Round Corner, or Square Corner
- Cylinder: 5 Pin C Keyway
Dimensions and Measurements
| Backset | 2-3/4″, 2-3/8″, Adjustable 2-3/8″ or 2-3/4″ |
| Cross Bore | 2-1/8″ |
| Door Thickness | 1-1/2″, 1-3/4″, 1-3/8″, 1-5/8″, 1-7/8″, 2″ |
| Edge Bore | 1″ |
| Handle Height | 2.3437 in. |
| Handle Projection | 2.1875 in. |
| Handle Width | 2.3437 in. |
| Product Weight | 5 lbs. |
| Trim Height | 2.5625 in. |
| Trim Width | 2.5625 in. |
Characteristics and Features
| Concealed Screws | No |
| Cylinder | 5 Pin C |
| Cylinder Type | Single Cylinder |
| Function | Keyed Entry |
| Handing | Left, Reversible, Right |
| Handle Material | Metal |
| Handle Style | Knob |
| Keyway | C |
| Knob Shape | Flat, Round |
| Latch Faceplate | Drive-In, Round Corner, Square Corner |
| Material | Brass |
| Panic Proof | No |
| Rosette Shape | Square |
| Solid Construction | Solid Brass |
| Theme | Contemporary |
