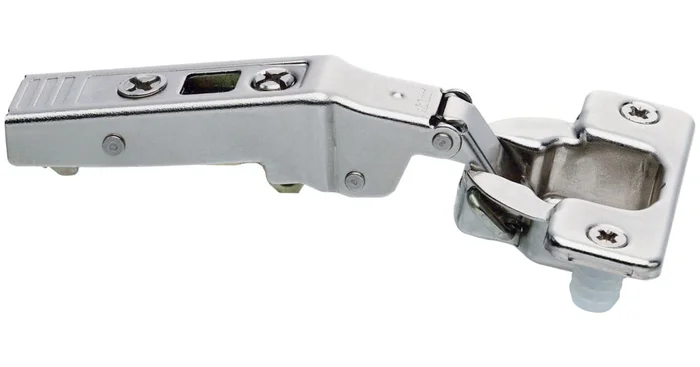

Description
Features:
- Includes a single (1) hinge in each order
- Constructed of high quality steel for durability and dependability
- Covered by Blum’s limited lifetime manufacturer warranty
- Self closing function will allow your cabinet door to close firmly and securely
- 3-way adjustable hinge for easy and customizable installation
- Designed for a 95 degree opening angle
- Demountable to allow for quick and easy removal of the cabinet door for cleaning or other purposes
- All necessary mounting hardware is included
Specifications:
- Hinge Mount: Full Inset, Partial Overlay
- Opening Angle: 95
- Material: Steel
- Installation Type: Clip On
- Cup Diameter: 1-3/8″
- Bore Distance Min/Max: 3″, 7″
- Cup Depth: 1/2″
- Mount Centers: 1-3/4″
Product Technologies:
- Concealed Hinge: Modernize your kitchen cabinets with a concealed hinge to create a seamless design and a new smooth functionality and feel. It’s important to know your desired overlay measurements and size compatibility before ordering, but once a successful installation is completed, you’ll be amazed at the big difference a small upgrade can make.
- Material – Steel: Steel is cheap strong and durable making it a favorite for hinges of all types. Though it is more prone to rusting than solid brass or stainless steel.
- Mounting Type – INSERTA™: Blum’s unique INSERTA™ system simplifies installation by using specialized expanding dowels with a push down lever and pre-drilled holes. Once the dowel have been inserted into the holes, just push down the lever to cause the dowels to expand and create a secure fitting. No tools needed once the holes have been drilled.
Dimensions and Measurements
| Angle | 95 Degrees |
| Boring Distance | 3, 7 mm |
| Cup Depth | 0.51 in. |
| Cup Depth mm | 13 mm |
| Cup Diameter | 1.38 in. |
| Cup Diameter mm | 35 mm |
| Inset | Full |
| Max Cabinet Door Thickness | 0.75 in. |
| Max Cabinet Door Thickness mm | 19 mm |
| Mount Centers | 1.77 in. |
| Mount Centers mm | 45 mm |
| Opening Angle | 95 |
| Overlay | Partial |
| Quantity | 1 |
Characteristics and Features
| 3-Way Adjustable | Yes |
| Adjustable | Yes |
| Adjustable Depth | Yes |
| Adjustable Height | Yes |
| Adjustable Side to Side | Yes |
| Arm Type | Full Cranked |
| Assembly Required | No |
| Bulk Pack | No |
| Cabinet Type | Panel (Frameless), Face Frame |
| Demountable | Yes |
| Front Angle | 10 Degree Positive, 15 Degree Positive, 20 Degree Positive |
| Hinge Mount | Full Inset, Partial Overlay |
| Hinge Type | Angled, Concealed Euro, Partial Overlay |
| Installation Type | Clip On |
| Material | Steel |
| Push to Open | No |
| Self Closing | Yes |
| Soft Close | No |
