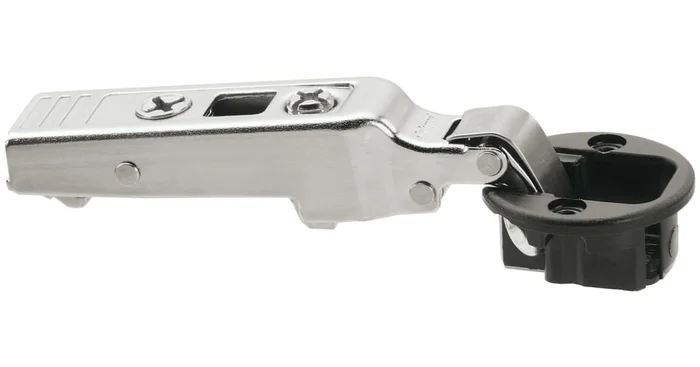

Description
Features:
- Includes a single (1) hinge in each order
- Constructed of high quality steel for durability and dependability
- Covered by Blum’s limited lifetime manufacturer warranty
- Self closing function will allow your cabinet door to close firmly and securely
- 3-way adjustable hinge for easy and customizable installation
- Designed for a 95 degree opening angle
- Demountable to allow for quick and easy removal of the cabinet door for cleaning or other purposes
Specifications:
- Hinge Mount: Full Overlay, Partial Overlay
- Opening Angle: 95
- Material: Steel
- Installation Type: Screw On
- Cup Diameter: 1″
- Bore Distance Min/Max: 5.5″, 7″
- Cup Depth: 1/2″
- Mount Centers: 7/8″
Product Technologies:
- Concealed Hinge: Modernize your kitchen cabinets with a concealed hinge to create a seamless design and a new smooth functionality and feel. It’s important to know your desired overlay measurements and size compatibility before ordering, but once a successful installation is completed, you’ll be amazed at the big difference a small upgrade can make.
- Material – Steel: Steel is cheap strong and durable making it a favorite for hinges of all types. Though it is more prone to rusting than solid brass or stainless steel.
- Mounting Type – Screw-On: The most common and standard method to secure hinges to your cabinetry. Typically using wood screws to attach the hinges to either your cabinet frame or cabinet door.
Dimensions and Measurements
| Angle | 95 Degrees |
| Boring Distance | 5.5, 7 mm |
| Cup Depth | 0.51, 1.02 in. |
| Cup Depth mm | 13 mm |
| Cup Diameter | 1.02 in. |
| Cup Diameter mm | 26 mm |
| Max Cabinet Door Thickness | 0.25 in. |
| Max Cabinet Door Thickness mm | 6, 7 mm |
| Mount Centers | 0.87 in. |
| Mount Centers mm | 22 mm |
| Opening Angle | 95 |
| Overlay | Full |
| Overlay mm | 6.5 mm |
| Quantity | 1 |
Characteristics and Features
| 3-Way Adjustable | Yes |
| Adjustable | Yes |
| Adjustable Depth | Yes |
| Adjustable Height | Yes |
| Adjustable Side to Side | Yes |
| Arm Type | Straight Arm |
| Assembly Required | No |
| Bulk Pack | No |
| Cabinet Type | Panel (Frameless), Face Frame |
| Demountable | Yes |
| Hinge Mount | Full Overlay, Partial Overlay |
| Hinge Type | Concealed Euro, Full Overlay |
| Installation Type | Screw |
| Material | Steel |
| Push to Open | No |
| Self Closing | Yes |
| Soft Close | No |
