Description

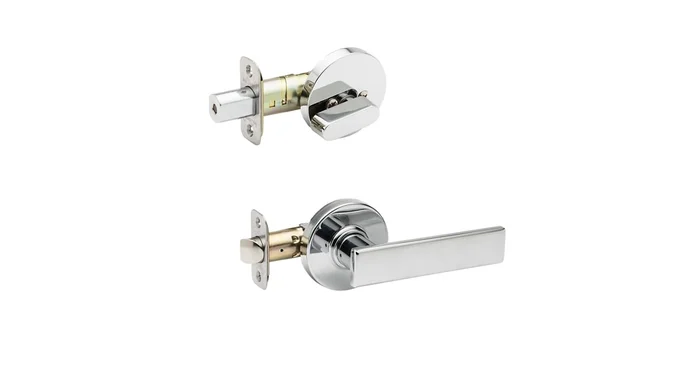

Interior Pack (Single Cylinder) Function: Single cylinder interior packs complete the interior mounting of a working mechanical lock set, and require an associated exterior single cylinder trim for installation. Includes a thumbturn for the interior side of the deadbolt and a knob or lever for the inside of the door.
Features:
- Exceeds criteria for BHMA grade 3 certification
- Constructed from all metal materials for long lasting durability
- Handing installs on left handed doors
- Includes a round corner latch faceplate
- Covered under a manufacturer limited lifetime mechanical and 5 year finish warranty
- Complies with standards of the Americans with Disabilities Act (ADA)
Specifications:
- Backset: Adjustable 2-3/8″ or 2-3/4″
- Cross Bore: 2-1/8″
- Edge Bore: 1″
- Door Thickness: 1-3/8″ to 1-3/4″
- Handing: Left
- Height: 2-5/8″
- Width: 2-5/8″
- Mounting Center to Center: 5-1/2″
- Projection: 2-1/8″
- Product Weight: 1.5 lbs.
- Latch Faceplate: Round Corner, Square Corner, or Drive-In
- Material: Zinc
Dimensions and Measurements
| Backset | Adjustable 2-3/8″ or 2-3/4″, 2-3/8″, 2-3/4″ |
| Center to Center | 5.5 in. |
| Cross Bore | 2-1/8″ |
| Door Thickness | 1-3/8″, 1-3/4″, 1-5/8″, 1-1/2″ |
| Edge Bore | 1″ |
| Handle Length | 4.875 in. |
| Handle Projection | 2.125 in. |
| Product Weight | 1.5 lbs. |
| Trim Height | 2.625 in. |
| Trim Width | 2.625 in. |
Characteristics and Features
| Concealed Screws | No |
| Cylinder Type | Single Cylinder |
| Function | Keyed Entry |
| Handing | Left |
| Handle Design | Remi |
| Handle Material | Zinc |
| Handle Style | Lever |
| Interconnected | No |
| Latch Faceplate | Square Corner, Round Corner, Drive-In |
| Lock Style | Single Point |
| Material | Zinc |
| Mount | Sectional |
| Panic Proof | No |
| Removable Core | No |
| Rosette Shape | Round |
| Theme | Modern |
