Description

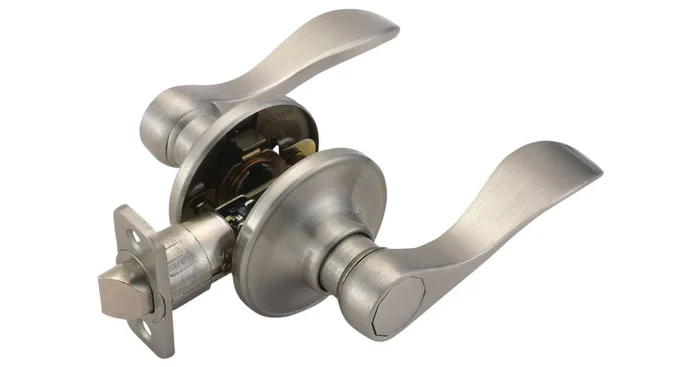

Springdale Interior Passage Leverset
The Springdale lever set features a popular wave shaped lever and is easily incorporated into most architectural styles.
Design House 742841 Features:
- Passage Function
- 2 Way Latch
- Grade 3 Security
- Cross Bore: 2-1/8″
- Edge Bore: 1″
- Adjustable 2-3/8 or 2-3/4 Inch Backset
- 1-3/8″ to 1-3/4″ door standard
- 1″ x 2-1/4 Radius corner
- Full 1/2″ throw
- Non-handed, reversible for Left or Right Hand Doors
- ADA Compliant
- UL Listed for use on fire doors (up to 3 hours)
Dimensions and Measurements
| Backset | 2-3/4″, 2-3/8″, Adjustable 2-3/8″ or 2-3/4″ |
| Door Thickness | 1-1/2″, 1-3/4″, 1-3/8″, 1-5/8″ |
| Edge Bore | 1″ |
Characteristics and Features
| Function | Passage |
| Handing | Left, Reversible, Right |
| Handle Material | Metal |
| Latch Faceplate | Round Corner |
| Lever Shape | Wave |
| Material | Steel |
| Rosette Shape | Round |
| Theme | Transitional |
