Description

All Emtek items are made to order

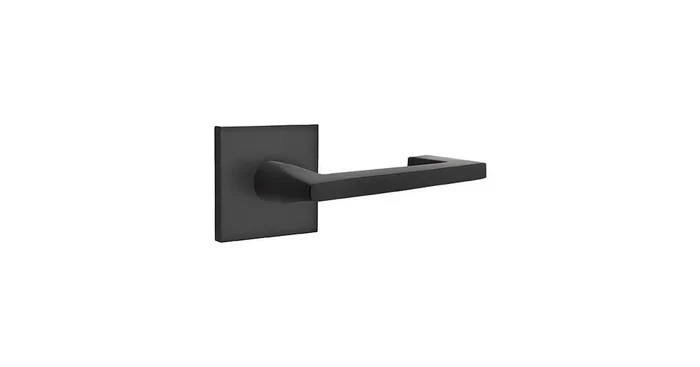

The Emtek Argos Lever is a perfect fit for the contemporary home. Each lever is hand polished and fitted to a sturdy and attractive brass rosette. The latches are heavy-duty die cast construction, with strong internal springs, solid brass nose bolts, and sintered metal cams. A plastic bushing located in the joint between the handle and the rosette ensures a friction-free wear surface, preventing metal from bearing on metal and providing smooth, long-lasting operation. Handles are positively connected to rosettes with a permanent clip. Each has a set screw which eliminates “handle wobble” when tightened. Emtek’s threaded tubes are machined brass to ensure good threads and prevent corrosion.

Passage Function: Emtek’s passage knobs and levers have no locking mechanism and is free turning on both the inside and outside. Many times passage knobs and levers are used on either a hallway or closet door where no security is necessary, but sometimes are used paired with a deadbolt for an entrance or back door.

Features:

• Solid brass rosette and housing give a long lasting and durable beauty
• Reversible handing for easy installation
• Emtek’s CF mechanism features concealed screws for a cleaner look; and a reduced 28° latch for a smoother and easier opening cycle
• Comes standard with a 2-3/8″ latch with the option for 2-3/4″ latch
• CF Mechanism is only available with square corner latch faceplates
• CF mechanism knob and leversets are backed by Emtek’s CF Mechanism Limited Lifetime warranty

Specifications:

• 28 Degree Latch: Yes
• Backset: 2-3/4″, 2-3/8″
• Concealed Screws: Yes
• Cross Bore: 2-1/8″
• Door Thickness: 1-1/4″, 1-3/8″, 1-1/2″, 1-5/8″, 1-3/4″, 1-7/8″, 2″, 2-1/8″, 2-1/4″, 2-3/8″, 2-1/2″, 2-5/8″, 2-3/4″, 2-7/8″, 3″
• Edge Bore: 1″
• Handing: Left, Reversible, Right
• Latch Faceplate: Square Corner
• Lever Length: 5″
• Projection: 2-1/4″

Product Variations:

• C505AG: Argos Dummy Brass Lever Set with CF Mechanism
• C510AG (This Model): Argos Passage Brass Leverset with CF Mechanism
• C520AG: Argos Privacy Brass Leverset with CF Mechanism
