Description

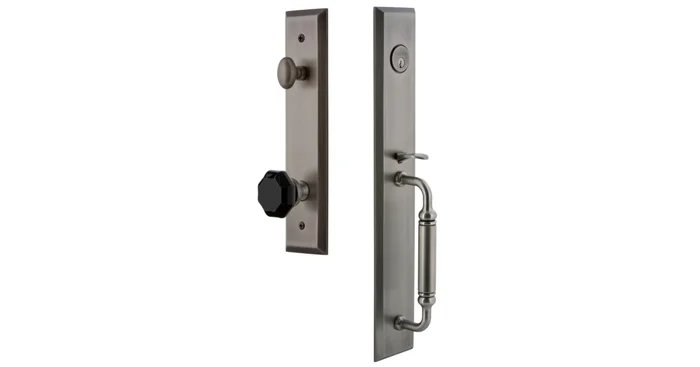

Keyed Entry (Single Cylinder) Function:This single cylinder handleset is keyed on the exterior with an associated locking mechanism on the inside that can quickly and easily lock or unlock the deadbolt latch. The exterior handle has a thumb plate that depresses to disengage the door latch and the interior handle features a lever or knob. Single cylinder locks are most commonly used to secure entrances to a residence or place of business.

Features:

• Hand forged solid brass and genuine lead crystal
• Handing is reversible for left or right handed doors
• Easily installs on standard prepared doors
• Includes a 2-3/4″ backset and square corner latch
• Covered by a Limited Lifetime Mechanical and 10 Year Finish Warranty
• Does not fulfill criteria of the American’s with Disabilities Act (ADA)
• Hand assembled in the United States
• Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys

Product Technologies:

• Solid Brass Construction: Grandeur rosettes and backsets are forged from a solid piece of brass. This process yields a denser, stronger and higher quality product that can better display intricate designs than casted door hardware.
• Genuine Crystal: Grandeur crystal knobs are constructed of at least 24% lead crystal. Crystal is both stronger and more reflective than glass; displaying a bright sparkle and rainbow prism effect.

Specifications:

• Backset: 2-3/8″
• Cross Bore: 2-1/8″
• Edge Bore: 1″
• Door Thickness: 1-3/4″ to 2″
• Handing: Reversible Left or Right
• Interior Height: 11″
• Exterior Height: 19″
• Interior Width: 2-1/2″
• Exterior Width: 3″
• Exterior Projection: 3″
• Knob Height: 2-1/8″
• Knob Width: 2-1/8″
• Grip Center to Center: 8-7/16″
• Latch Faceplate: Square Corner
• Cylinder: 5 Pin C
