Description

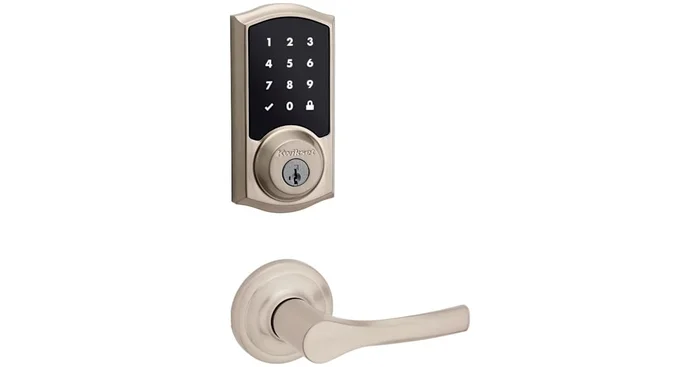

Keypad Entry: Go keyless with the Keypad Entry. Enter a valid user code for entry. Perfect for garage/house doors, store rooms, home office and more.
Features:
- Tested to exceed ANSI/BHMA Grade 3 security requirements
- Constructed of high quality materials for durability and dependability
- Installs easily with all necessary mounting hardware included
- Covered by Kwikset’s 1 year electronics and limited lifetime manufacturer warranties
- Supports up to 30 user codes
- Two keys will be shipped per lock – three or more items keyed alike will ship a total of 6 keys
SmartKey®:
- This re-key technology allows you to re-key your lock in seconds. It also features stainless steel racks, pins, and side locking bar for increased strength and security.
Specifications:
- Backset: Adjustable 2-3/8″ or 2-3/4″
- Cross Bore: 2-1/8″
- Edge Bore: 1″
- Door Thickness: 1-3/8″ to 1-3/4″
- Handing: Reversible Left or Right
- Handle Length: 4-1/16″
- Handle Projection: 2-9/16″
- Trim Width: 2-5/8″
- Trim Height: 2-5/8″
- Product Weight: 4.72 lbs.
- Latch Faceplate: Round Corner
- Cylinder: SmartKey 5 Pin KW1
Dimensions and Measurements
| Backset | 2-3/4″, 2-3/8″, Adjustable 2-3/8″ or 2-3/4″ |
| Cross Bore | 2-1/8″ |
| Door Thickness | 1-1/2″, 1-3/4″, 1-3/8″, 1-5/8″ |
| Edge Bore | 1″ |
| Handle Length | 4.09 in. |
| Handle Projection | 2.5625 in. |
| Product Weight | 4.72 lbs. |
| Trim Height | 2.625 in. |
| Trim Width | 2.625 in. |
Characteristics and Features
| App Compatibility | Amazon Alexa, Home Connect, SmartThings |
| Auto-Lock Capable | Yes |
| Battery Quantity | 4 |
| Concealed Screws | No |
| Cylinder | SmartKey 5 Pin |
| Cylinder Type | Single Cylinder |
| Device Compatibility | Amazon Echo, Android, Apple iOS Device, Smartphone |
| Full Backplate | No |
| Function | Keyless Entry |
| Handing | Left, Reversible, Right |
| Handle Design | Henley |
| Handle Material | Metal |
| Handle Style | Lever |
| Input Type | Touchscreen |
| Keyway | KW1 |
| Latch Faceplate | Round Corner |
| Lever Shape | Straight |
| Lit Keypad | Yes |
| Lock Style | Single Point |
| Material | Zinc |
| Motorized Deadbolt | Yes |
| Number of Codes | 30 |
| Rosette Shape | Arch, Round |
| Smart Home | Yes |
| Theme | Transitional |
| Wireless Communication | Z-Wave |
