Description

PLEASE NOTE: When selecting Keying Options above, this item is treated as two separate items. By selecting “Keyed Alike” the handle and deadbolt will be keyed alike. Selecting “Keyed Differently” the handle and deadbolt will be keyed to two different keys. When ordering multiple combo packs on the same order, “Keyed Alike” means every handle and deadbolt will be keyed to the same key. “Keyed Differently” means every handle and deadbolt will be keyed to different keys. If you require different groups of combo packs to be “Keyed Alike”, separate orders will be required. Please contact customer service if you need help determining your needs

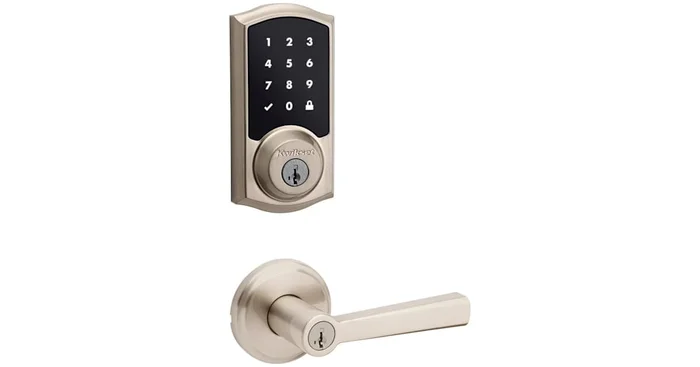

Keypad Entry: Go keyless with the Keypad Entry. Enter a valid user code for entry. Perfect for garage/house doors, store rooms, home office and more.

Features:

• Tested to exceed ANSI/BHMA Grade 2 security requirements
• Constructed of high quality materials for durability and dependability
• Installs easily with all necessary mounting hardware included
• Covered by Kwikset’s 1 year electronics and limited lifetime manufacturer warranties
• ADA compliant
• Supports up to 30 user codes
• Two keys will be shipped per lock – three or more items keyed alike will ship a total of 6 keys

SmartKey®:

• This re-key technology allows you to re-key your lock in seconds. It also features stainless steel racks, pins, and side locking bar for increased strength and security.

Specifications:

• Backset: Adjustable 2-3/8″ or 2-3/4″
• Cross Bore: 2-1/8″
• Edge Bore: 1″
• Door Thickness: 1-3/8″ to 1-3/4″
• Handing: Reversible Left or Right
• Handle Length: 4-3/16″
• Handle Projection: 2-9/16″
• Trim Width: 2-11/16″
• Trim Height: 2-11/16″
• Product Weight: 5.2 lbs.
• Latch Faceplate: Round Corner
• Cylinder: SmartKey 5 Pin KW1
