Description

Please note: Mini splits must be installed by a professional according to your local codes. Any mini split installed otherwise will void any manufacturer warranty.

Outdoor condenser unit only, indoor evaporator unit(s) required for proper functionality. For questions or assistance building a multi-zone system, please call (855) 484-3292 to speak to one of our experts.

Product Information:

Enhanced Connectivity
• LG’s new R-32 mini split units require a 5-conductor cable (Not Included) instead of the standard 4-conductor, improving communication reliability and enabling a new leak detection feature.

Inverter Technology

• LG’s outdoor condensers are designed with efficient inverter technology. An electronic expansion valve and a variable speed compressor carefully regulate the refrigerant flow, reducing energy consumption and allowing for consistent, accurate temperatures.

Gold Fin Protection

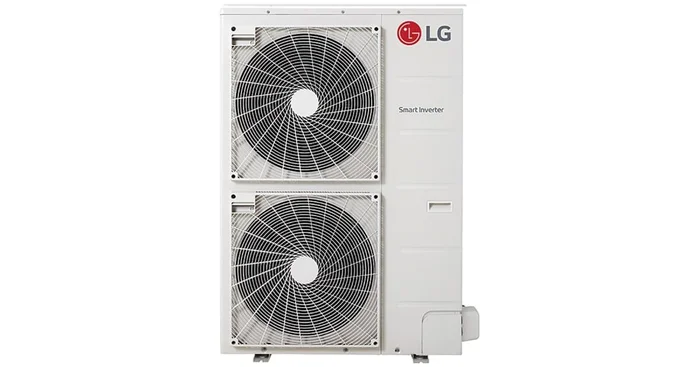

• To ensure the reliability and longevity of the KUSXA481A’s heat exchanger, LG employs a Gold Fin coating that prevents corrosion and improves durability.

Low Ambient Operations

• This outdoor unit supports cooling operations down to 5 degrees Fahrenheit and heating operations down to -13 degrees Fahrenheit. There is also a defrost feature, which removes frost from the condenser coil in frigid conditions.

Integrated Base Pan Heater

• Base pan heaters come factory installed on all LGRED° outdoor condensers in order to mitigate the risk of damage caused by freezing condensate.

Quiet Design

• Thanks to a brushless direct current motor and a twin rotary compressor, the KUSXA481A is significantly quieter than traditional air conditioning systems. These components reduce mechanical sound, electrical sound, and vibrations within the unit.

Specifications:

• Cooling BTU Capacity: 48,000
• Heating BTU Capacity: 52,000
• Zone Capacity: 1
• Low Ambient Heating: Yes
• Minimum Outdoor Temperature for Heating: -13 F
• Minimum Outdoor Temperature for Cooling: 5 F
• Liquid Line Connection Size: 3/8″
• Gas Line Connection Size: 5/8″
• Depth: 13″
• Height: 54-3/8″
• Width: 37-3/8″
• Recommended Breaker Size: 40 A
• Amperage: 32 A
• Voltage: 208, 230V

Product Assurance:

• Certifications:
  • AHRI
  • CSA
• Manufacturer Warranty: 5 Year, 7 Year

Required Components:

• Disconnect Box and Electrical Whip Kit: The disconnect box and whip kit gives an easy way to connect your outdoor condenser to your fuse box
• Base Pan Heater (Optional): The base pan heater stops ice from building up on the outdoor unit, preventing performance degradation and potential damage
• Outdoor Condenser Plastic Pad (Optional): An outdoor condenser pad provides an even surface on which to place your outdoor condenser
• Wall Bracket (Optional): A wall bracket provides a way to mount your outdoor condenser off the ground to keep it clear it of debris
