Description

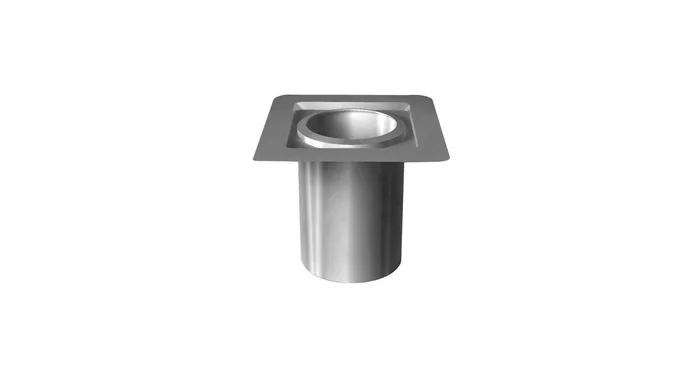

7″ Class A Chimney Pipe Firestop / Joist Shield from Sure-Temp
This piece is used in floor/ceiling penetrations other than those which include a ceiling support or attic insulation shield. This shield is not required when passing through roof.
The Sure-Temp Chimney System is designed to meet the needs of today’s high-efficiency Wood Stoves and other appliances burning wood, oil or gas. Components may be combined in a wide variety of ways to solve almost any chimney installation requirement.
Features:
- Materials: Stainless steel
- Clearance: 2″ to combustibles
- Allowable Flue Gas Temperatures:
- Maximum Continuous: 1,000 Degrees Fahrenheit / 540 Degrees Celsius
- Brief Forced Firing: 1,400 Degrees Fahrenheit / 760 Degrees Celsius (60 min.)
- Creosote Burn Out: 2,100 Degrees Fahrenheit / 1,150 Degrees Celsius (3 x 10 min.)
- UL Listed: UL-103-HT
- Warranty: Lifetime Limited Warranty
Dimensions and Measurements
| Base Length | 15 in. |
| Base Width | 13 in. |
| Height | 12 in. |
| Inside Diameter | 9.125 in. |
| Outside Diameter | 11 in. |
| Pipe Inside Diameter | 7 in. |
Characteristics and Features
| Configuration | Shield |
| Material | Stainless Steel |
| Pipe Class | Class A |
| Pipe Shape | Round |
| Vent Construction | Double Wall |
