Description

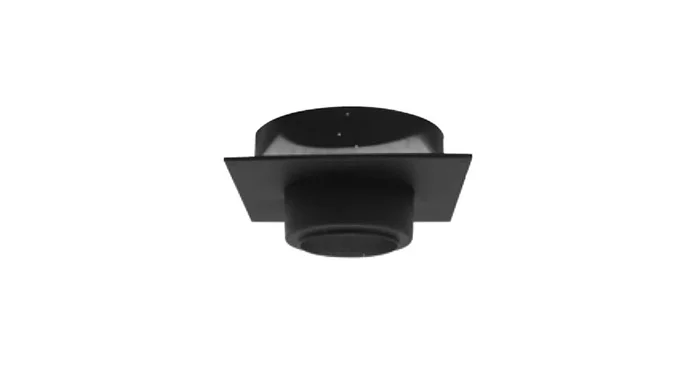

7″ Class A Chimney Pipe Square Ceiling Support from Sure-Temp
The finish support package has a square trim plate. With proper framing, all ceiling supports assure at least 2″ minimum clearance to combustibles at the support level and can carry up to 50′ of vertical chimney height.
The Sure-Temp Chimney System is designed to meet the needs of today’s high-efficiency Wood Stoves and other appliances burning wood, oil or gas. Components may be combined in a wide variety of ways to solve almost any chimney installation requirement.
Features:
- Materials: Stainless steel
- Clearance: 2″ to combustibles
- Allowable Flue Gas Temperatures:
- Maximum Continuous: 1,000 Degrees Fahrenheit / 540 Degrees Celsius
- Brief Forced Firing: 1,400 Degrees Fahrenheit / 760 Degrees Celsius (60 min.)
- Creosote Burn Out: 2,100 Degrees Fahrenheit / 1,150 Degrees Celsius (3 x 10 min.)
Dimensions and Measurements
| Base Length | 15.25 in. |
| Base Width | 15.25 in. |
| Bottom Diameter | 7.25 in. |
| Depth | 3.5 in. |
| Pipe Inside Diameter | 7 in. |
| Top Diameter | 13.25 in. |
Characteristics and Features
| Configuration | Support Box |
| Material | Stainless Steel |
| Pipe Class | Class A |
| Pipe Shape | Round |
| Vent Construction | Double Wall |
