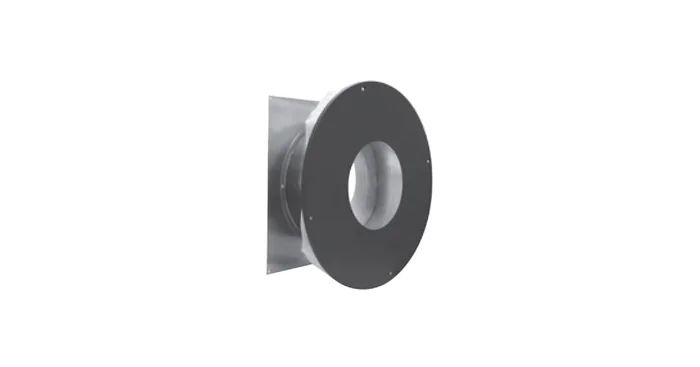

8″ Class A Chimney Pipe Insulated Wall Thimble from Sure-Temp

Metalbest’s Insulated Wall Thimble installs quickly and eliminates the need for using individual firestops. The round shielding acts as a radiation shield and provides the required two inch air space clearance to combustibles. The two sections telescope to accommodate 6″ to 11″ of wall thickness.

The Sure-Temp Chimney System is designed to meet the needs of today’s high-efficiency Wood Stoves and other appliances burning wood, oil or gas. Components may be combined in a wide variety of ways to solve almost any chimney installation requirement.

Features:

• Materials: Stainless steel
• Clearance: 2″ to combustibles
• Allowable Flue Gas Temperatures:
• Maximum Continuous: 1,000 Degrees Fahrenheit / 540 Degrees Celsius
• Brief Forced Firing: 1,400 Degrees Fahrenheit / 760 Degrees Celsius (60 min.)
• Creosote Burn Out: 2,100 Degrees Fahrenheit / 1,150 Degrees Celsius (3 x 10 min.)
