Description

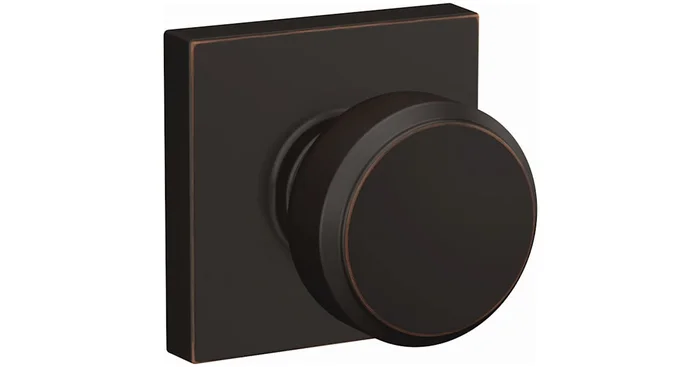

Passage: Passage door hardware has no locking mechanism. Both the interior and exterior handles are always free making it perfect for hallways, closet doors, and anywhere else a lock isn’t needed. Passage door hardware can also be used in conjunction with a deadbolt to secure a back door or entrance.
Features:
- BHMA grade 2 security
- Crafted from high quality materials for strength and durability
- Installs easily with all necessary mounting hardware included
- Covered by a limited lifetime warranty
Specifications:
- Backset: Adjustable 2-3/8″ or 2-3/4″
- Cross Bore: 2-1/8″
- Edge Bore: 1″
- Door Thickness: 1-3/8″ – 1-3/4″
- Handing: Reversible Left or Right
- Handle Width: 2-1/8″
- Handle Height: 2-1/8″
- Handle Projection: 2-5/16″
- Trim Width: 2-3/4″
- Trim Height: 2-3/4″
- Product Weight: 1.55lb
- Latch Faceplate: Round Corner
Dimensions and Measurements
| Backset | 2-3/4″, 2-3/8″, Adjustable 2-3/8″ or 2-3/4″ |
| Cross Bore | 2-1/8″ |
| Door Thickness | 1-1/2″, 1-3/4″, 1-3/8″, 1-5/8″ |
| Edge Bore | 1″ |
| Handle Height | 2.13 in. |
| Handle Projection | 2.34 in. |
| Handle Width | 2.13 in. |
| Product Weight | 1.55 lbs. |
| Trim Height | 2.72 in. |
| Trim Width | 2.72 in. |
Characteristics and Features
| Concealed Screws | No |
| Function | Passage |
| Handing | Left, Reversible, Right |
| Handle Design | Bowery |
| Handle Material | Metal |
| Handle Style | Knob |
| Knob Shape | Flat, Round |
| Latch Faceplate | Round Corner |
| Material | Zinc |
| Rosette Shape | Square |
| Theme | Modern |
| Trim Design | Collins |
