Description

Summit’s selection of European-style range hoods includes units specially designed to be installed in compliance with Sections 308 and 309 of the ADA Guidelines.

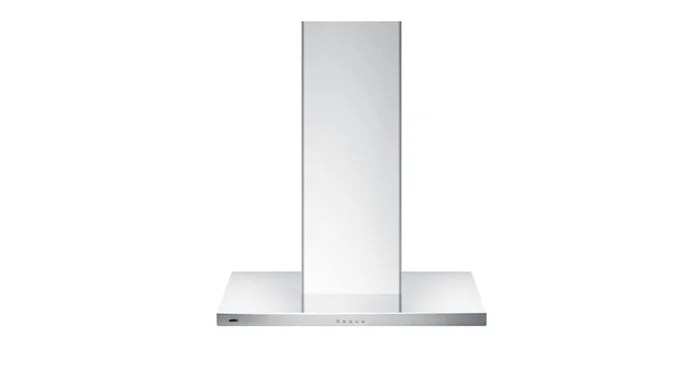

Sized at 30″ wide, this model is perfect for all kitchens looking for elegant style and powerful ventilation. This unit features a rectangular T-shaped canopy to suit any setting. Includes a chimney extender that lets you adjust the height to best fit your space. Two pre-installed LED light bulbs offer convenient illumination for your cooking surface.

This unit comes with a remote terminal block and wall switch cover to allow the controls to be installed separately from the hood and at a lower, accessible height following ADA guidelines. The 3-speed fan and 15-minute timer are operated from an easy-to-use slider control panel. Some assembly is required.

This range hood can be used ducted with a 6″ round duct, or for recirculating/ducted operation. Comes with two charcoal filters for use in kitchens where there is no exhaust connection to the outside. Two aluminum mesh cassette filters offer plenty of ventilation coverage. This model includes a pre-installed 3-prong 115V cord and mounting bracket.

Features:

• European style range hood designed to bring effective ventilation over 30″ wide cooking surfaces
• Control panel comes on a remote terminal block to be installed according to ADA compliant guidelines for improved accessibility (some assembly required)
• Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible
• Two round carbon filters attach to the blower to absorb grease and odors when using the hood in recirculating mode
• 400 CFM blower to effectively remove smoke and cooking odors from your kitchen
• Pre-installed power cord with 3-prong plug for 115V outlets
• Includes two pre-installed LED bulbs to illuminate your cooking surface
• Includes a telescoping chimney extender that allows you to adjust the overall height between 25 1/4″ to 37″
• Durable construction in an attractive style with a horizontal grain
• Covered under a 1 year parts and labor manufacturer warranty

Specifications:

• CFM: 400
• Sones: 10
• Nominal Width: 30″
• Width: 29-1/2″
• Height: 1-15/16″
• Depth: 19-11/16″
• Duct Size: 6″ Round
• Height Above Cooktop: 26″ to 30″
• Amperage: 2.6A
• Voltage: 115V
