Description

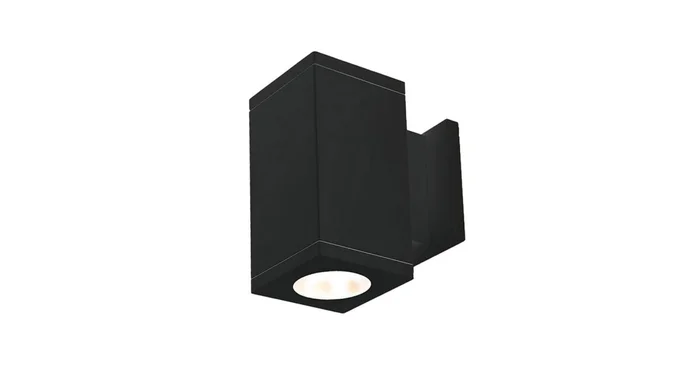

The latest energy efficient LED technology in an appealing cubical profile delivers accent and wall wash lighting. Precise engineering using the latest energy efficient LED technology with a built-in reflector for superior optics. Available in a variety of specifiable light distributions and beam angles.
Features
- Driver located inside of fixture with universal input (120v-220v-277v)
- Constructed of die cast aluminum
- Integrated LED lighting
- Can be mounted with lights directed upwards or downwards
- 19° beam spread
- Designed for commercial or residential use
- Intended for outdoor use
- Smooth and continuous dimming with an electronic low voltage (ELV) dimmer
- ETL rated for wet locations
- Compliant with California Title 24 energy standards (90CRI versions only)
- Covered under a 2 year finish and a 5 year functional manufacturer warranty
Dimensions
- Height: 9-1/2″
- Width: 5-1/2″
- Extension: 8-1/4″
- Product Weight: 21.74 lbs
- Backplate Height: 4-7/8″
- Backplate Width: 4-7/8″
- Backplate Depth: 1/2″
Electrical Specifications
- Wattage: 36 watts
- Lumens: 1875, 2000, 2170, 2400, 2450, or 2500
- Color Temperature: 2700K, 3000K, 3500K, or 4000K
- Color Rendering Index: 85 or 90CRI
- Average Hours: 50000
- Voltage: 120, 240, and 277 volts
Dimensions and Measurements
| Backplate Depth | 0.5 in. |
| Backplate Height | 4.88 in. |
| Backplate Width | 4.88 in. |
| Beam Spread | 19 Degrees |
| Extension | 8.25 in. |
| Height | 9.5 in. |
| Nominal Height | 10 in. |
| Nominal Width | 6 in. |
| Product Weight | 21.74 lbs. |
| Width | 5.5 in. |
Characteristics and Features
| Bulb Base | Integrated LED |
| Bulb Type | LED |
| Bulb Visible | No |
| Color Temperature | 3500K, 2700K, 4000K, 3000K |
| Dimmable | Yes |
| Energy Efficient | Yes |
| Fixture Shape | Rectangle |
| Full Backplate | No |
| LED | Yes |
| Light Direction | Down Lighting, Up Lighting |
| Material | Aluminum |
| Number of Bulbs | 1 |
| Number of Light Source(s) | 1 |
| Reversible Mounting | Yes |
| Shade Color | White |
| Shade Shape | Rectangle |
| Theme | Contemporary |
| Vintage Edison Bulb | No |
