Description

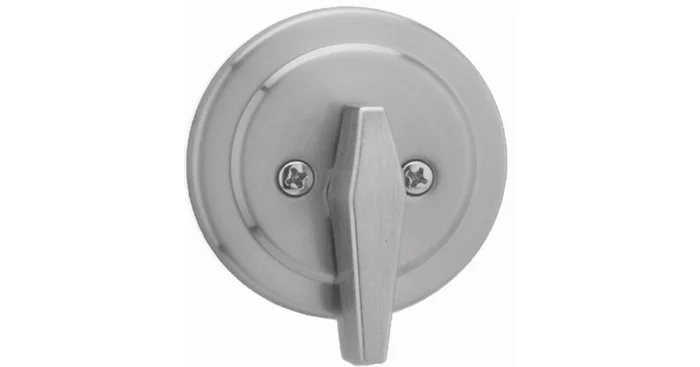

One-Sided: One-sided deadbolts work via thumb turn or key on one side of the door without any keying or unlatching function on the other side. Often times they are used on panic rooms, dark rooms, or storage rooms, but can be installed anywhere that additional privacy or security is needed.
Features:
- Tested to exceed ANSI/BHMA Grade 3 security requirements
- Constructed of solid brass for durability and dependability
- ADA compliant
- Covered by Weslock’s 25 year mechanical, and 5 year finish manufacturer warranty
Specifications:
- Backset: Adjustable 2-3/8″ or 2-3/4″
- Cross Bore: 2-1/8″
- Edge Bore: 1″
- Door Thickness: 1-3/8″ to 2″
- Handing: Reversible Left or Right
- Latch Faceplate: Round Corner
Dimensions and Measurements
| Backset | 2-3/4″, 2-3/8″, Adjustable 2-3/8″ or 2-3/4″ |
| Cross Bore | 2-1/8″ |
| Door Thickness | 1-1/2″, 1-3/4″, 1-3/8″, 1-5/8″, 1-7/8″, 2″ |
| Edge Bore | 1″ |
| Height | 2.5 in. |
| Product Weight | 0.6 lbs. |
| Projection | 0.9375 in. |
| Width | 2.5 in. |
Characteristics and Features
| Concealed Screws | No |
| Handing | Left, Reversible, Right |
| Latch Faceplate | Round Corner |
| Material | Brass |
| Rosette Shape | Round |
| Solid Construction | Solid Brass |
| Theme | Traditional |
