Description
Features:
- Interior rosette has EXPOSED SCREWS and are not concealed on the interior side
- Exceeds criteria for BHMA/ANSI certification
- All metal construction for long-lasting durability
- Handing is reversible for either left or right door configurations
- Easily installs on any standard prepared door
- Includes a standard round corner latch faceplate
- Kwikset offers a Limited Lifetime Mechanical and Finish Warranty
- New contemporary style

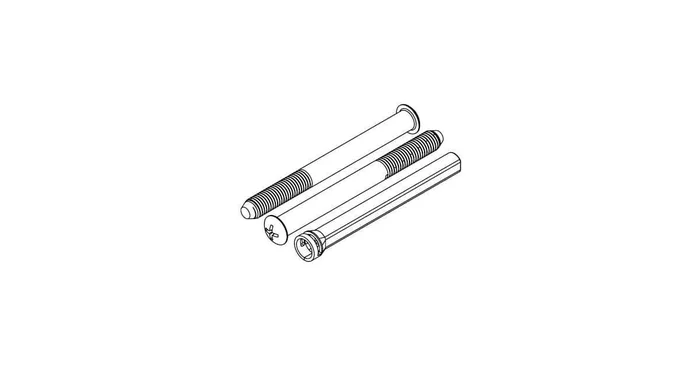

- Thick Door Kit required for doors with a thickness of 1-3/4″ to 2-1/4″ (Part Number: 81706)
Specifications:
- Backset: Adjustable 2-3/8″ or 2-3/4″
- Cross Bore: 2-1/8″
- Edge Bore: 1″
- Door Thickness: 1-3/8″ to 2-1/4″
- Handing: Reversible Left or Right
- Handle Height: 2-3/16″
- Handle Width: 2-3/16″
- Handle Projection: 2-7/16″
- Latch Faceplate: Round Corner
Dimensions and Measurements
| Backset | 2-3/4″, 2-3/8″, Adjustable 2-3/8″ or 2-3/4″ |
| Cross Bore | 2-1/8″ |
| Door Thickness | 1-1/2″, 1-3/4″, 1-3/8″, 1-5/8″, 1-7/8″, 2″, 2-1/4″, 2-1/8″ |
| Edge Bore | 1″ |
| Handle Height | 2.1875 in. |
| Handle Projection | 2.4063 in. |
| Handle Width | 2.1875 in. |
| Latch Throw | 0.5 in. |
| Product Weight | 1.897 lbs. |
| Trim Height | 2.625 in. |
| Trim Width | 2.625 in. |
Characteristics and Features
| Concealed Screws | No |
| Cylinder Type | Single Cylinder |
| Function | Keyed Entry |
| Handing | Left, Reversible, Right |
| Handle Material | Metal |
| Handle Style | Knob |
| Latch Faceplate | Round Corner |
| Rosette Shape | Round |
| Shape | Round |
| Theme | Modern, Contemporary |
